ComPacT NSX series, 100-630A molded case circuit breaker, ComPacT NSX series, 100-630A molded case circuit breaker Factory supply-Zhejiang Zhongkong Electric Co., Ltd.

Compact NSX Series (100A-630A) Technical Specifications:

Parameters	NSX100	NSX160	NSX250	NSX400	NSX630
Frame current (Inm)	100A	160A	250A	400A	630A
Rated current range	16A-100A	40A-160A	100A-250A	200A-400A	400A-630A
Ultimate breaking capacity Icu (415V)	36kA-150kA	36kA-150kA	36kA-150kA	36kA-150kA	36kA-150kA
Trip unit type	Thermomagnetic (TM-D) / Electronic (Micrologic)	Thermomagnetic (TM-D) / Electronic (Micrologic)	Thermomagnetic (TM-D) / Electronic (Micrologic)	Electronic (Micrologic)	Electronic (Micrologic)
Extreme number	3P,4P	3P,4P	3P,4P	3P,4P	3P,4P
Installation method	Fixed type, insertion type, pull-out type	Fixed type, insertion type, pull-out type	Fixed type, insertion type, pull-out type	Fixed type, insertion type, pull-out type	Fixed type, insertion type, pull-out type

Model	Old model order number	New product order number	Model	Old model order number	New product order number	Model	Old model order number	New product order number
NSX100F TMD 16 3P3D F	LV429637	C10F3TM016	NSX100N TMD 16 3P3D F	LV429847	C10N3TM016	NSX100H TMD 16 3P3D F	LV429677	C10H3TM016
NSX100F TMD 25 3P3D F	LV429636	C10F3TM025	NSX100N TMD 25 3P3D F	LV429846	C10N3TM025	NSX100H TMD 25 3P3D F	LV429676	C10H3TM025
NSX100F TMD 32 3P3D F	LV429635	C10F3TM032	NSX100N TMD 32 3P3D F	LV429845	C10N3TM032	NSX100H TMD 32 3P3D F	LV429675	C10H3TM032
NSX100F TMD 40 3P3D F	LV429634	C10F3TM040	NSX100N TMD 40 3P3D F	LV429844	C10N3TM040	NSX100H TMD 40 3P3D F	LV429674	C10H3TM040
NSX100F TMD 50 3P3D F	LV429633	C10F3TM050	NSX100N TMD 50 3P3D F	LV429843	C10N3TM050	NSX100H TMD 50 3P3D F	LV429673	C10H3TM050
NSX100F TMD 63 3P3D F	LV429632	C10F3TM063	NSX100N TMD 63 3P3D F	LV429842	C10N3TM063	NSX100H TMD 63 3P3D F	LV429672	C10H3TM063
NSX100F TMD 80 3P3D F	LV429631	C10F3TM080	NSX100N TMD 80 3P3D F	LV429841	C10N3TM080	NSX100H TMD 80 3P3D F	LV429671	C10H3TM080
NSX100F TMD 100 3P3D F	LV429630	C10F3TM100	NSX100N TMD 100 3P3D F	LV429840	C10N3TM100	NSX100H TMD 100 3P3D F	LV429670	C10H3TM100
NSX160F TMD 100 3P3D F	LV430632	C16F3TM100	NSX160N TMD 100 3P3D F	LV430842	C16N3TM100	NSX160H TMD 100 3P3D F	LV430672	C16H3TM100
NSX160F TMD 125 3P3D F	LV430631	C16F3TM125	NSX160N TMD 125 3P3D F	LV430841	C16N3TM125	NSX160H TMD 125 3P3D F	LV430671	C16H3TM125
NSX160F TMD 160 3P3D F	LV430630	C16F3TM160	NSX160N TMD 160 3P3D F	LV430840	C16N3TM160	NSX160H TMD 160 3P3D F	LV430670	C16H3TM160
NSX250F TMD 160 3P3D F	LV431632	C25F3TM160	NSX250N TMD 160 3P3D F	LV431832	C25N3TM160	NSX250H TMD 160 3P3D F	LV431672	C25H3TM160
NSX250F TMD 200 3P3D F	LV431631	C25F3TM200	NSX250N TMD 200 3P3D F	LV431831	C25N3TM200	NSX250H TMD 200 3P3D F	LV431671	C25H3TM200
NSX250F TMD 250 3P3D F	LV431630	C25F3TM250	NSX250N TMD 250 3P3D F	LV431830	C25N3TM250	NSX250H TMD 250 3P3D F	LV431670	C25H3TM250
NSX400F MIC2.3 400 3P F	LV432676	C40F32D400	NSX400N MIC2.3 400 3P F	LV432693	C40N32D400	NSX400H MIC2.3 400 3P F	LV432695	C40H32D400
NSX630F MIC2.3 630 3P F	LV432876	C63F32D630	NSX630N MIC2.3 630 3P F	LV432893	C63N32D630	NSX630H MIC2.3 630 3P F	LV432895	C63H32D630
NSX100F TMD 16 4P3D F	LV429647	C10F6TM016	NSX100N TMD 16 4P3D F	LV429857	C10N6TM016	NSX100H TMD 16 4P3D F	LV429687	C10H6TM016
NSX100F TMD 25 4P3D F	LV429646	C10F6TM025	NSX100N TMD 25 4P3D F	LV429856	C10N6TM025	NSX100H TMD 25 4P3D F	LV429686	C10H6TM025
NSX100F TMD 32 4P3D F	LV429645	C10F6TM032	NSX100N TMD 32 4P3D F	LV429855	C10N6TM032	NSX100H TMD 32 4P3D F	LV429685	C10H6TM032
NSX100F TMD 40 4P3D F	LV429644	C10F6TM040	NSX100N TMD 40 4P3D F	LV429854	C10N6TM040	NSX100H TMD 40 4P3D F	LV429684	C10H6TM040
NSX100F TMD 50 4P3D F	LV429643	C10F6TM050	NSX100N TMD 50 4P3D F	LV429853	C10N6TM050	NSX100H TMD 50 4P3D F	LV429683	C10H6TM050
NSX100F TMD 63 4P3D F	LV429642	C10F6TM063	NSX100N TMD 63 4P3D F	LV429852	C10N6TM063	NSX100H TMD 63 4P3D F	LV429682	C10H6TM063
NSX100F TMD 80 4P3D F	LV429641	C10F6TM080	NSX100N TMD 80 4P3D F	LV429851	C10N6TM080	NSX100H TMD 80 4P3D F	LV429681	C10H6TM080
NSX100F TMD 100 4P3D F	LV429640	C10F6TM100	NSX100N TMD 100 4P3D F	LV429850	C10N6TM100	NSX100H TMD 100 4P3D F	LV429680	C10H6TM100
NSX160F TMD 100 4P3D F	LV430642	C16F6TM100	NSX160N TMD 100 4P3D F	LV430852	C16N6TM100	NSX160H TMD 100 4P3D F	LV430682	C16H6TM100
NSX160F TMD 125 4P3D F	LV430641	C16F6TM125	NSX160N TMD 125 4P3D F	LV430851	C16N6TM125	NSX160H TMD 125 4P3D F	LV430681	C16H6TM125
NSX160F TMD 160 4P3D F	LV430640	C16F6TM160	NSX160N TMD 160 4P3D F	LV430850	C16N6TM160	NSX160H TMD 160 4P3D F	LV430680	C16H6TM160
NSX250F TMD 160 4P3D F	LV431642	C25F6TM160	NSX250N TMD 160 4P3D F	LV431842	C25N6TM160	NSX250H TMD 160 4P3D F	LV431682	C25H6TM160
NSX250F TMD 200 4P3D F	LV431641	C25F6TM200	NSX250N TMD 200 4P3D F	LV431841	C25N6TM200	NSX250H TMD 200 4P3D F	LV431681	C25H6TM200
NSX250F TMD 250 4P3D F	LV431640	C25F6TM250	NSX250N TMD 250 4P3D F	LV431840	C25N6TM250	NSX250H TMD 250 4P3D F	LV431680	C25H6TM250
NSX400F MIC2.3 400 4P F	LV432677	C40F42D400	NSX400N MIC2.3 400 4P F	LV432694	C40N42D400	NSX400H MIC2.3 400 4P F	LV432696	C40H42D400
NSX630F MIC2.3 630 4P F	LV432877	C63F42D630	NSX630N MIC2.3 630 4P F	LV432894	C63N42D630	NSX630H MIC2.3 630 4P F	LV432896	C63H42D630
NSX100F MA 2.5 3P3D F	LV429745	C10F3MA003	NSX100N MA 2.5 3P3D F	LV429755	C10N3MA003	NSX100H MA 2.5 3P3D F	LV429765	C10H3MA003
NSX100F MA 6.3 3P3D F	LV429744	C10F3MA007	NSX100N MA 6.3 3P3D F	LV429754	C10N3MA007	NSX100H MA 6.3 3P3D F	LV429764	C10H3MA007
NSX100F MA 12.5 3P3D F	LV429743	C10F3MA013	NSX100N MA 12.5 3P3D F	LV429753	C10N3MA013	NSX100H MA 12.5 3P3D F	LV429763	C10H3MA013
NSX100F MA 25 3P3D F	LV429742	C10F3MA025	NSX100N MA 25 3P3D F	LV429752	C10N3MA025	NSX100H MA 25 3P3D F	LV429762	C10H3MA025
NSX100F MA 50 3P3D F	LV429741	C10F3MA050	NSX100N MA 50 3P3D F	LV429751	C10N3MA050	NSX100H MA 50 3P3D F	LV429761	C10H3MA050
NSX100F MA 100 3P3D F	LV429740	C10F3MA100	NSX100N MA 100 3P3D F	LV429750	C10N3MA100	NSX100H MA 100 3P3D F	LV429760	C10H3MA100
NSX100F MIC2.2M 25 3P F	LV429828	C10F32M025	NSX100N MIC2.2M 25 3P F	LV429833	C10N32M025	NSX100H MIC2.2M 25 3P F	LV429838	C10H32M025
NSX100F MIC2.2M 50 3P F	LV429827	C10F32M050	NSX100N MIC2.2M 50 3P F	LV429832	C10N32M050	NSX100H MIC2.2M 50 3P F	LV429837	C10H32M050
NSX100F MIC2.2M 100 3P F	LV429825	C10F32M100	NSX100N MIC2.2M 100 3P F	LV429830	C10N32M100	NSX100H MIC2.2M 100 3P F	LV429835	C10H32M100
NSX160F MA 100 3P3D F	LV430831	C16F3MA100	NSX160N MA 100 3P3D F	LV430833	C16N3MA100	NSX160H MA 100 3P3D F	LV430835	C16H3MA100
NSX160F MA 150 3P3D F	LV430830	C16F3MA150	NSX160N MA 150 3P3D F	LV430832	C16N3MA150	NSX160H MA 150 3P3D F	LV430834	C16H3MA150
NSX160F MIC2.2M 150 3P F	LV430985	C16F32M150	NSX160N MIC2.2M 150 3P F	LV430988	C16N32M150	NSX160H MIC2.2M 100 3P F	LV430992	C16H32M100
NSX160F MIC2.2M 100 3P F	LV430986	C16F32M100	NSX160N MIC2.2M 100 3P F	LV430989	C16N32M100	NSX160H MIC2.2M 150 3P F	LV430991	C16H32M150
NSX250F MA 220 3P3D F	LV431748	C25F3MA220	NSX250N MA 220 3P3D F	LV431752	C25N3MA220	NSX250H MA 220 3P3D F	LV431756	C25H3MA220
NSX250F MIC2.2M 220 3P F	LV431160	C25F32M220	NSX250N MIC2.2M 220 3P F	LV431165	C25N32M220	NSX250H MIC2.2M 220 3P F	LV431170	C25H32M220
NSX400F MIC1.3M 320 3P F	LV432748	C40F31M320	NSX400N MIC1.3M 320 3P F	LV432749	C40N31M320	NSX400H MIC1.3M 320 3P F	LV432750	C40H31M320
NSX400F MIC2.3M 320 3P F	LV432775	C40F32M320	NSX400N MIC2.3M 320 3P F	LV432776	C40N32M320	NSX400H MIC2.3M 320 3P F	LV432777	C40H32M320
NSX630F MIC1.3M 500 3P F	LV432948	C63F31M500	NSX630N MIC1.3M 500 3P F	LV432949	C63N31M500	NSX630H MIC1.3M 500 3P F	LV432950	C63H31M500
NSX630F MIC2.3M 500 3P F	LV432975	C63F32M500	NSX630N MIC2.3M 500 3P F	LV432976	C63N32M500	NSX630H MIC2.3M 500 3P F	LV432977	C63H32M500

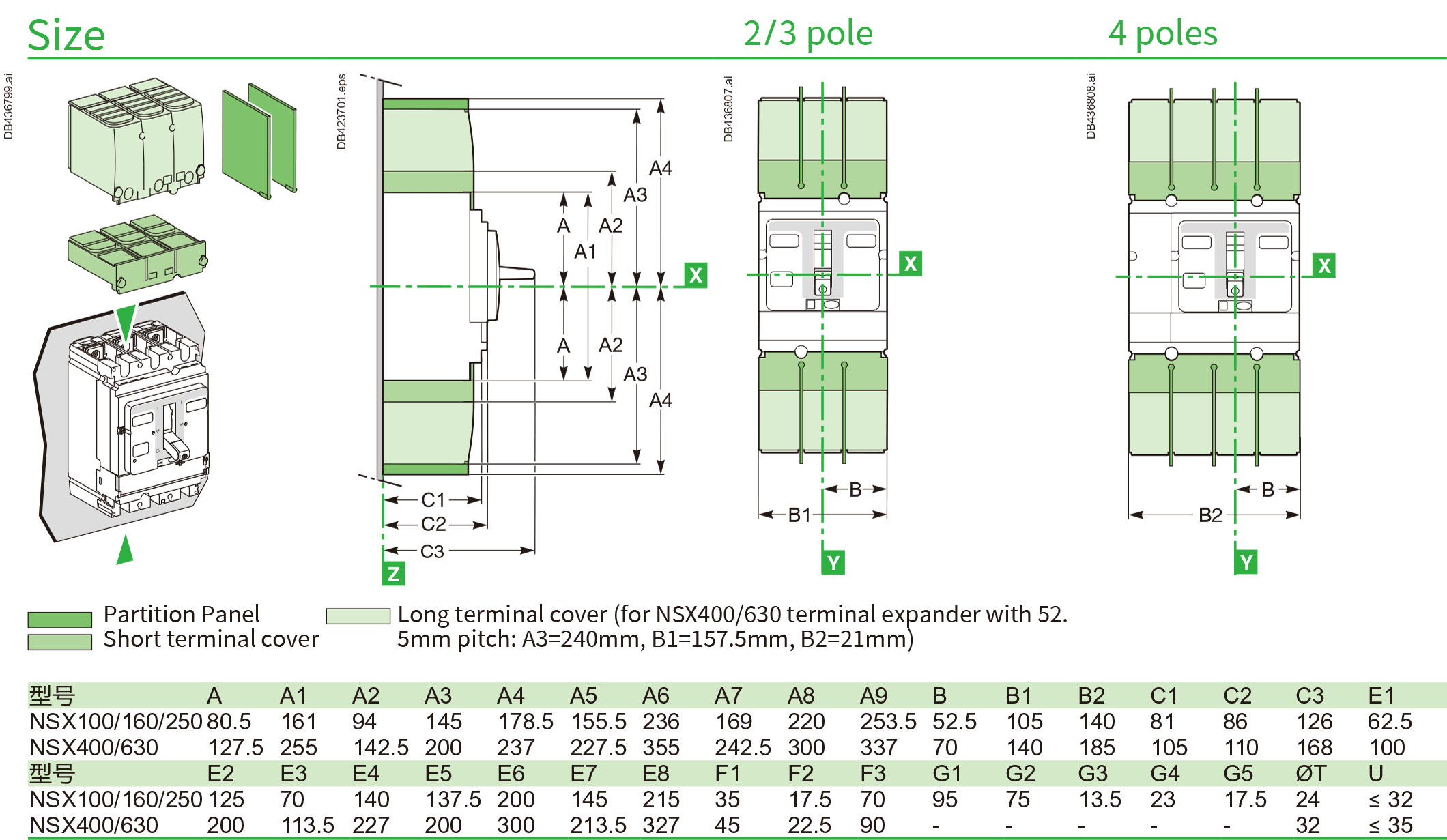

ComPacT NSX Dimensions

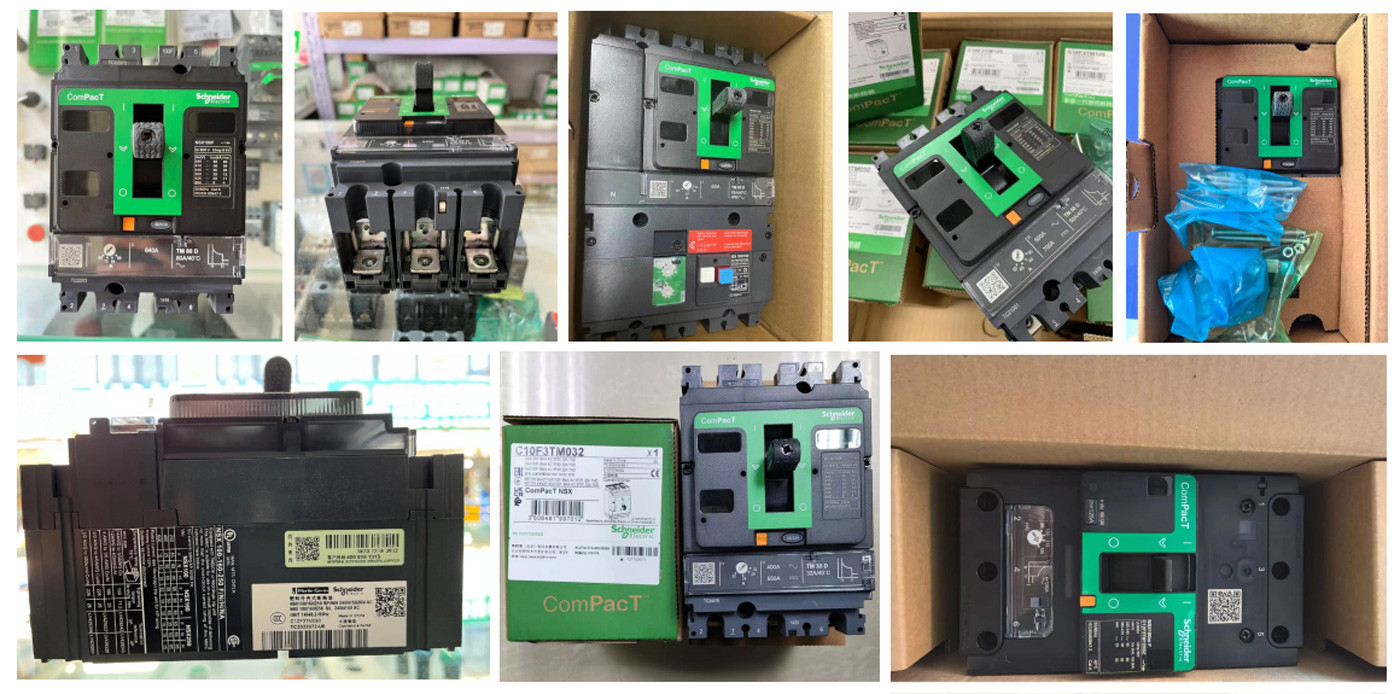

ComPacT NSX100-630 Fixed Circuit Breaker

Application scenarios

The application scenarios of Schneider NSX series plastic housing circuit breakers are very broad, covering multiple key areasin our daily lives and industry. Simply put, wherever safety, stability, and intelligent power distribution are needed, you can almost always find its presence.


	Industrial Buildings, Machinery Manufacturing, Ventilation Equipment and Water Treatment
	ComPacTNSX can achieve motor protection through several types of contactor units:
	■ Short-circuit protection can be achieved through MA magnetic tripunit or electronic trip unit MicroLogic 1-M. ■ The electronic trip unit MicroLogic6E-M combines additional motor-specific protections(phase imbalance, stall, low load, and long start) to prevent overload and short circuit.
	These models also provide communication, measurement, and operation assistance. The excellent tripping capability of ComPacT NSX circuit breakers automatically providesClass 2 coordination with motor starters, complying with IEC60947-4-1 standard.

	Petroleum and Natural Gas
	The ComPacT NSX with maximum current 630 A can provide high breakingcapacity, meeting major requirements in the oil and gas industry:
	■ Maximum breaking capacity 100 kA (690 V) ■ Up to 200 ka (415V)
	The circuit breaker can be equipped with thermal-magnetic, basic electronic trip unit (MicroLogic2), and advanced electronic trip unit (MicroLogic5/6), providing embedded metering and communication. The ComPacT NSX series circuit breakers provide excellent breaking capacity at 415 V and 690 V [b].

	Maritime Industry
	The ComPacT NSX series with a maximum rated current up to 630A features high breaking capacity levels HB1/HB2 for marine applications.
	The device can be equipped with thermal-magnetic, basic electronic trip unit (MicroLogic2), and advanced electronic trip unit (MicroLogic5/6) to provide embedded metering and communication. The standard ComPacT NSX circuit breaker AC and DC series can be used in main switchgear for the maritime sector [b].
